Battery
Capacity
12000mAh
7.4V Nominal
91.2Wh
Chemistry
Lithium Polymer UN38.3 Certified – Safe for air, sea, and land transport.
Runtime
Best Case
Worst Case
Replacement
User replaceable
Cycles before replacement
Years before replacement
Power
Input Wattage (Sustain)
2W minimum, 3W preferred
Input Wattage (Charge)
5W minimum (USB, 5V @ 1A)
24W preferred (DC/Lead Acid, 12V @ 2A)
60W quick charge (DC 24V @ 2.5A)
Interfaces
Ethernet
Speed
10/100 Base-T
Features
Auto Crossover cable support
Internal networking switch
Per port Passive POE input and output
Cellular
Protocol/s
4G LTE Cat-1
LTE Bands
B1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 25, 26, 28, 66
Data Rate
10 Megabits, 1.125 Megabytes
Regions
Global6
SIM Card
Embedded MFF2
Hologram Global IoT coverage
Antenna/s - Internal
2x Pulse W3796
Antenna/s - External
2x SMA Ports
Optional, Included
LoRa
LoRa not supported in the initial release.
Available in v2.1 - Coming Q3 2205.
Frequency
868MHz to 925MHz
Data Rate
Inversely proportional to the range required
Max 25kBits/second
Realistic 1kBit/second - typical of LoRa
Regions
Global
SIM Card
Embedded MFF2
Hologram Global IoT coverage
Antenna/s - Internal
Antenna/s - External
1x SMA Ports
Optional, Included
GNSS
Frequency
'L Band'
1575.42 MHz (L1)
Constellations
GPS, GLONASS, QZSS, Galileo, BeiDou
WiFi
Protocol/s
802.11b/g/n
Wifi4
Frequency
2.4GHz
Bluetooth / BLE
Protocol/s
Bluetooth 'Classic'
Bluetooth Low Energy
Frequency
2.4GHz

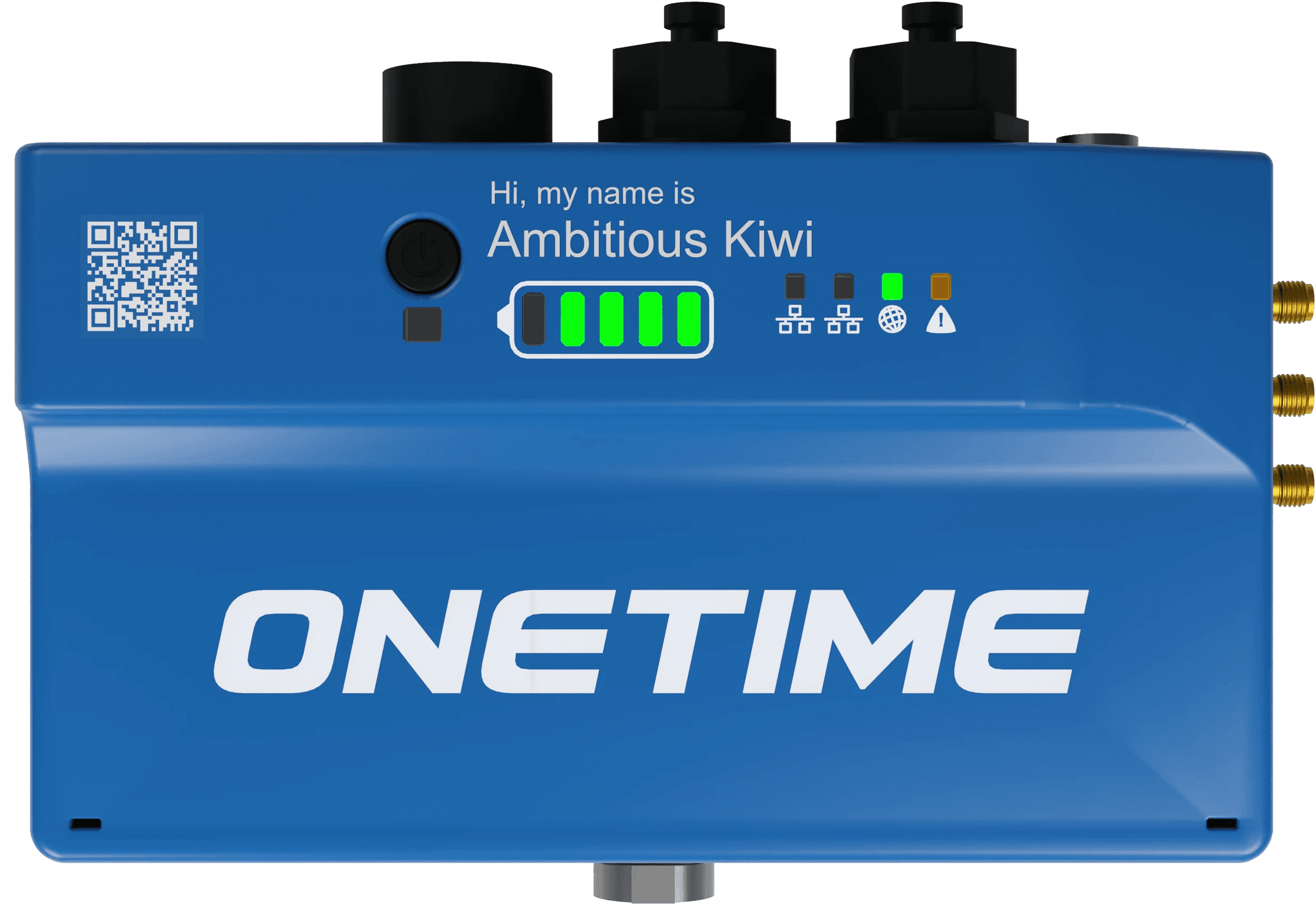

Size and Weight
10.5 cm
4.1 inches
18.5 cm
7.3 inches
Height:
9.5 cm (3.7 inches)
Width:
18.5 cm (7.3 inches)
Depth:
10.5 cm (4.1 inches)
Weight:
1.5 kg (3.31 pounds)
Operating Environment
Ingress Protection
IP66 with HF mat attached & DC Barrel Jack, Ethernet Ports sealed.
IP66 means dust tight and protected against water jets.
Regulatory
FCC, RoHS
Relative Humidity
5% per IP64
Operating Temperature
20°C ~ +65°C
Storage Temperature
-40°C ~ +85°C
Connections

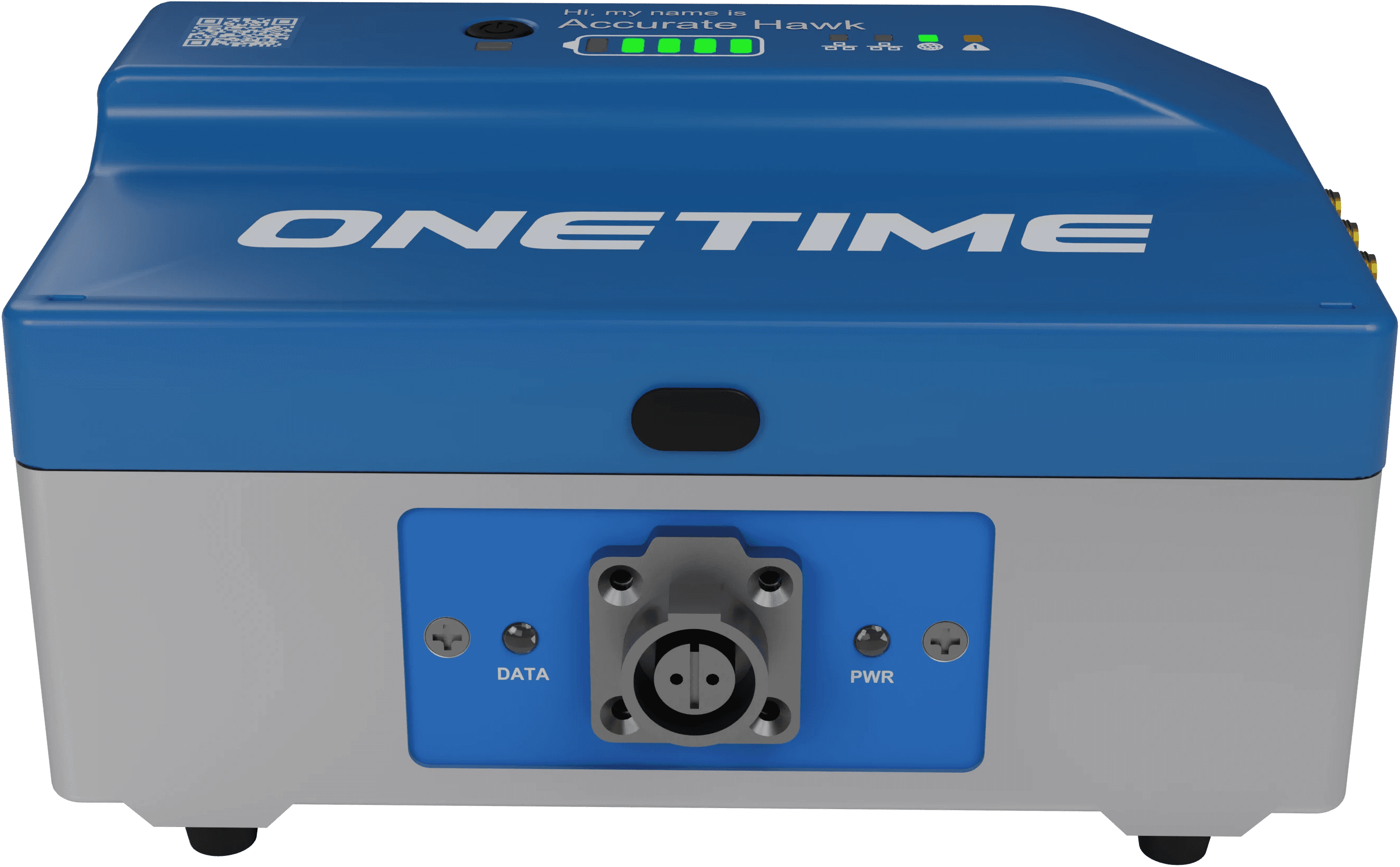

HF Port
1x CNLinko LP-12-2 Metal
For differential RF signal and power
Power
DC Barrel Jack
3V - 25V @ 2.5A sustained
Standard 2.1mm X 5.5mm size
Ethernet
2x RJ45 connectors
External Cellular Antenna/s
2x SMA Ports
External LoRa Antenna
1x SMA Port
Power Over Ethernet
Type
Passive POE
Input and output supported by both connectors independently
Output
Power from internal batteries can simulate any voltage between 5V to 24V.
Power from the DC Port is directly passed through.
Power output is limited to 2A at any voltage, max 48W
Input
Charging is possible from an ethernet port with passive POE
Standard charging parameters apply, with Over Voltage Protection
Clock
'Internal' RTC
Very high resolution, capable of nano seconds
High instability
'External' RTC
High resolution, capable of microseconds
Long term stability
GNSS / GPS
Atomic clocks aboard satellites
Requires GNSS lock
Cellular Time Servers
Relatively local, close to device
Rough accuracy (± 250ms)
NTP Servers
General internet time servers
Rough accuracy (± 1s or more)
LoRa arbitration7
In cellular & GNSS denied environment
(± 1s or more)
RTC Performance
'External' RTC
Drift: ±1ppm
Accuracy: 31.54 seconds per year,86.4 milliseconds per day
Strategy: Resynced start and during each GNSS lock / cellular connection
'Internal' RTC
Drift: ±10ppm
Accuracy: 315.36 seconds per year, 864.0 milliseconds per day
Strategy: Resynced frequently with external RTC
Storage
Memory Size
32MB (Megabytes)
Memory Type
Flash (Persistent)
Max IDs / Passings
(without recycling memory)
453,438
Max Unique IDs / Passings
(without recycling memory)
151,146
Persistent memory
Persistent memory is retained after unit powers off, is never lost, and will be sent to the cloud at the next available opportunity.
Memory recycling
The memory will be recycled over time if there is no user interaction. In most use cases this is fine, as data will have been transferred over cellular automatically well before hand.
Networking Services
HTTP
Posting timing / status data to external servers
Automatic downloading of new firmware updates
MQTT
Posting timing / status data to external servers
Automatic downloading of new firmware updates
Command / Control / Configuration
Raw TCP Sockets
Real-time timing and status data output
Command / Control / Configuration
Website Interface
Uploading of firmware updates
Real-time timing and status data output
Command / Control / Configuration
FTP
Interact with the local file system, retrieve logs
mDNS
Allows searching for units on a local network, and broadcasting of available functionality
DHCP / Static IPs
Local network usage without a dedicated router
Toggleable / Configurable
Compatible Software
RaceTec
Race Result
Cloud Ingestion
Yes via Transponder Module
Local Network
Yes
BlackBox Timing
RUFUS
Additional Software
Other software interfaces can be supported on request.
